For a skincare brand, a leaking jar is a disaster. It ruins unboxing experiences, damages retail relationships, and leads to costly returns.
While many brands blame the jar itself, the culprit is often the Closure System Match. A perfect seal requires three elements working in harmony: the right Liner, the correct Torque, and a precision-molded Neck Finish.
At ECO-BAMBOO, we don't just sell jars; we engineer Leak-Proof Packaging Solutions1. This guide explains how to guarantee product integrity from factory to vanity.
1. The Critical Component: Choosing the Right Liner
The liner (or gasket) is the unsung hero of packaging. It compensates for microscopic irregularities in the glass rim. Choosing the wrong liner is the #1 cause of leakage.
Common Liner Types & Best Use Cases
| Liner Type | Mechanism | Best For | ECO-BAMBOO Solution |
|---|---|---|---|
| PE Foam (EPE) | Compressible foam creates a physical barrier. | General Creams | Standard in our Bamboo Lids2 |
| Pressure Sensitive (PS) | Adheres to the jar rim upon tightening. | Dry Products / Pills | Optional add-on |

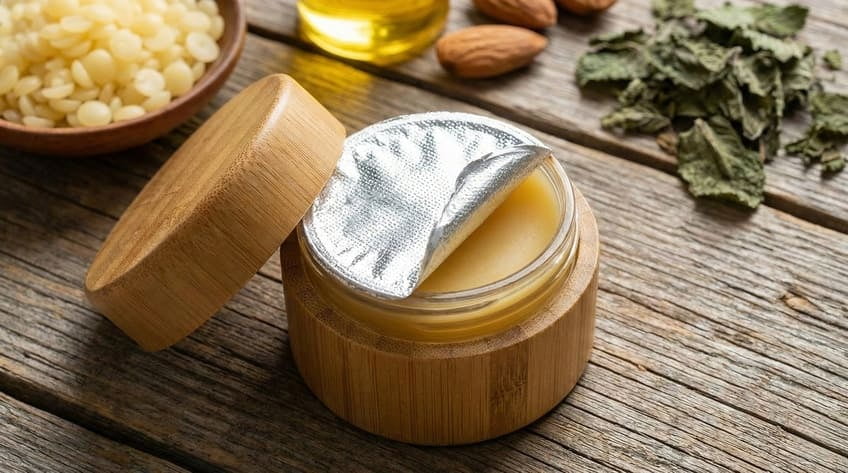

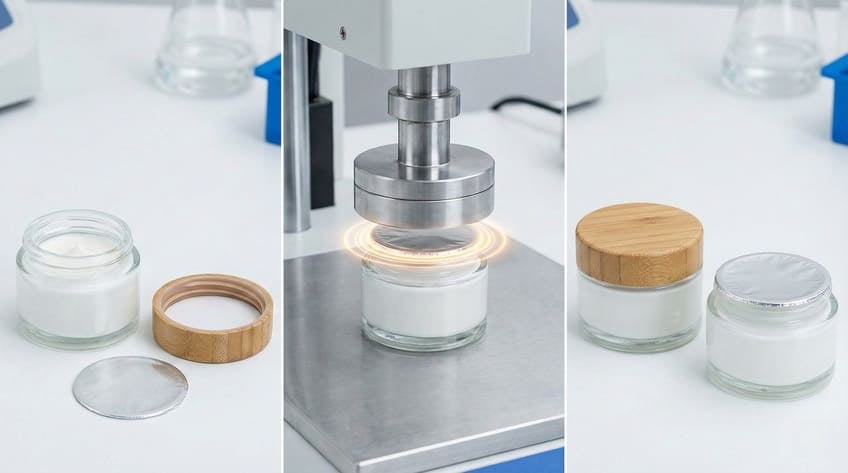

| Induction Heat Seal (IHS) | Fuses foil to the jar rim via magnetic field. | Liquids / Oils | Tamper-Evident Jars3 |

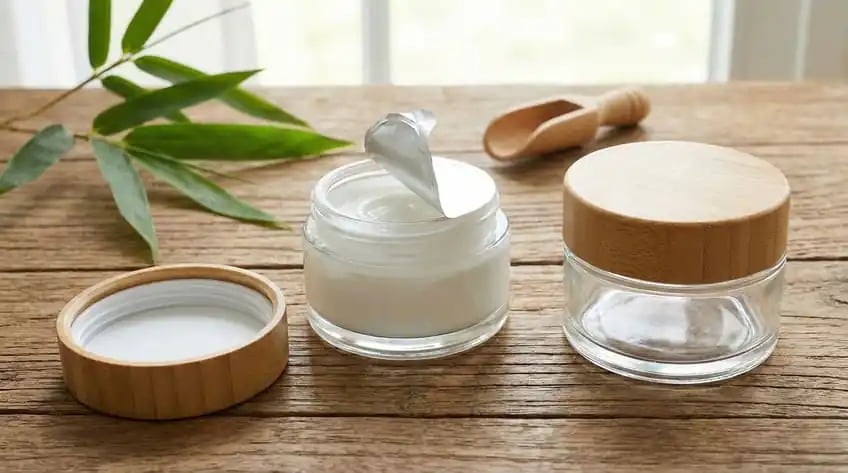

| Pull-Tab Disc | A separate plastic disc sitting on the jar rim. | Luxury Masks | Included in premium sets |

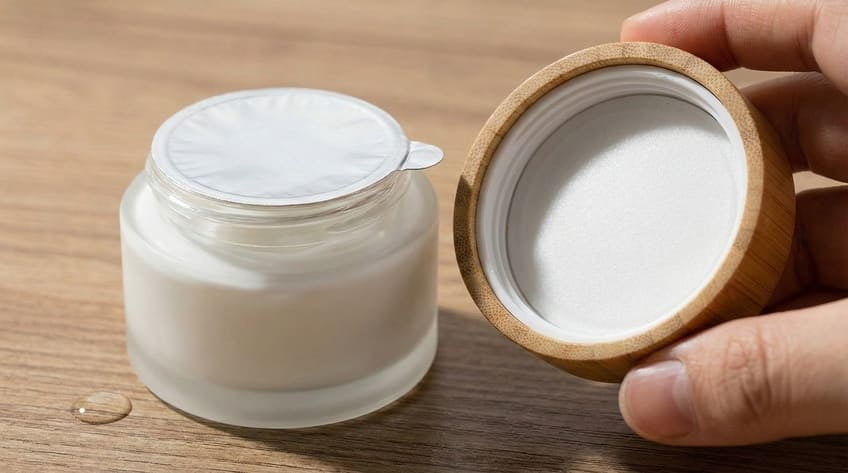

Factory Insight: For semi-solid creams, a high-density PE Foam Liner inside a bamboo cap is sufficient. For oils or runny lotions, an Induction Seal is mandatory to prevent wicking.
2. The Engineering: "Land Area" and "Torque"
You can have the best liner, but if the engineering is off, it will fail.

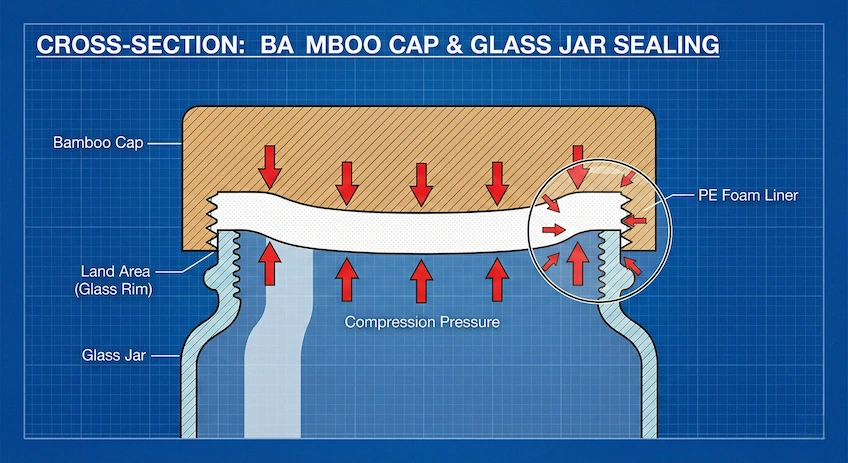

- Land Area: The top surface of the jar neck (where the liner sits) must be perfectly flat and polished. ECO-BAMBOO jars undergo a secondary polishing step to ensure zero roughness.
- Application Torque: The cap must be screwed on tight enough to compress the liner, but not so tight that it strips the threads or cracks the bamboo shell.
- Recommended Torque: 10-15 in-lbs for a 50mm cap.
3. The Ultimate Fix: Airless Technology

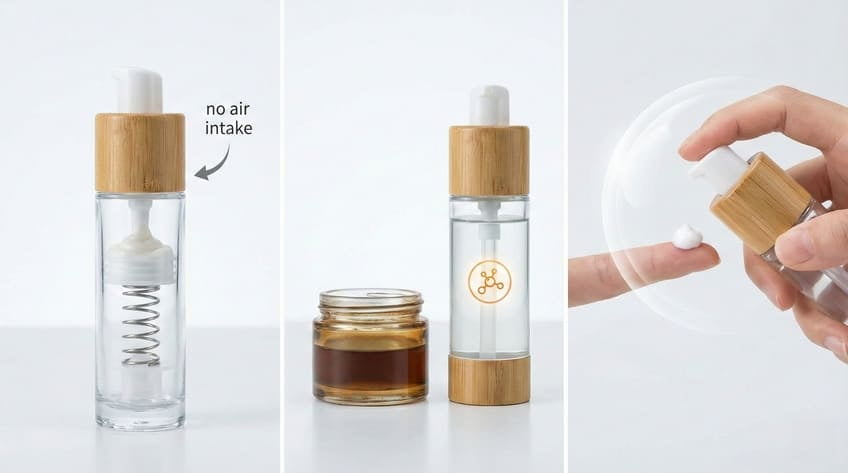

If your formula is extremely sensitive to air (e.g., Vitamin C) or very low viscosity, a standard screw-top jar might never be enough. The solution is Airless Pump Technology4.

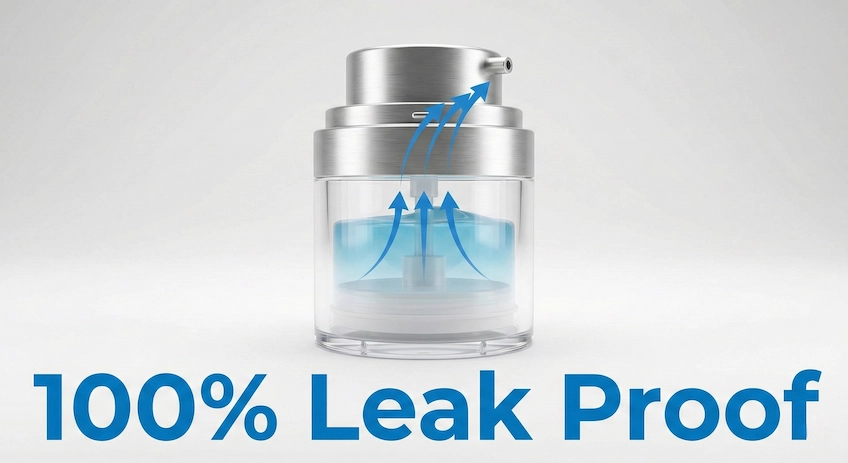

- How It Works: A piston rises as product is dispensed, creating a vacuum.
- Benefit: No air gap means zero oxidation and zero leakage, regardless of orientation.
4. How We Test for Leaks (QC Protocol)
Don't wait for customer complaints. Validate your packaging before launch. ECO-BAMBOO follows ASTM D3078 standards for leak testing.
- Vacuum Chamber Test: Jars are submerged in water under a vacuum (-0.06 MPa). Any stream of bubbles indicates a failure.
- Drop Test: Filled jars are dropped from 1 meter to ensure the seal holds upon impact.
Conclusion
A perfect seal is not an accident; it's a result of engineering. By selecting the right liner and partnering with a manufacturer who understands torque and tolerances, you safeguard your product's reputation.
Don't settle for "good enough." Choose ECO-BAMBOO's precision-engineered jars for peace of mind.
